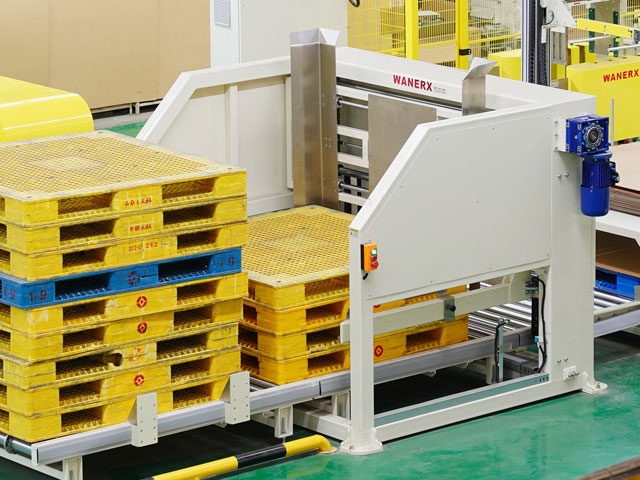

Pallet dispenser

Specifications

NO.

Pallet dispenser

parameter

1

Size

1900 L* 1700 W* 1800 H (customizable)

2

Capacity of magazine

10 pcs

3

Electrical

1.5kw

4

Pneumatic element

SMC


Layer pad inserter

prevent inverted stacking

Specifications

  1. Paper pickup machine: 2200 L * 1000 W * 3100 H
  2. Paper laying table: 1500 L * 1500 W * 800 H
  3. Maximum partition storage capacity: 200 pcs
  4. Motor power and brand: 0.4 Kw (Shengbang / CUHK)
  5. Pneumatic component brands: SMC, PIAB


Products Description



Front Layer Stacker

Cardboard centering

The function of the stacking machine is that when the stacking function is turned on on the screen, the original single-pack feed can be switched to enter the grabbing position every two packs at the same time, in order to reduce the number of actions of the robot, thereby improving the efficiency of palletizing.

Specifications

  1. Size: 1800 L* 1800 W* 1300 H MM
  2. Cardboard size max: 1200 L* 1450 W MM
  3. Side adjustment: 200mm
  4. Micro motor: JSCC
  5. Lifting height: 350 MM
  6. Servo motor: 1kw
  7. Reducer: Limin
  8. Pneumatic element: SMC


Squaring Device

Specifications

  1. Machine size: 3800 L* 2800W* 3800 H MM
  2. Squaring range: 900-1500L* 900-1500W* 2200H MM
  3. Servo motor: Schneider, Siemens, TAIDA
  4. Reducer: Limin or other
  5. brands of the same level Power supply: 8kw


Loading Station

Positioning device

Back Layer stacker

Specifications

  1. Dimensions: 1800 L * 1800 W * 1300 H
  2. Maximum lifting size: 1200 L * 1450 W
  3. Maximum ceiling height: 350 MM
  4. Micro motor brand: Jingyan or CUHK
  5. Pneumatic components brand: SMC
